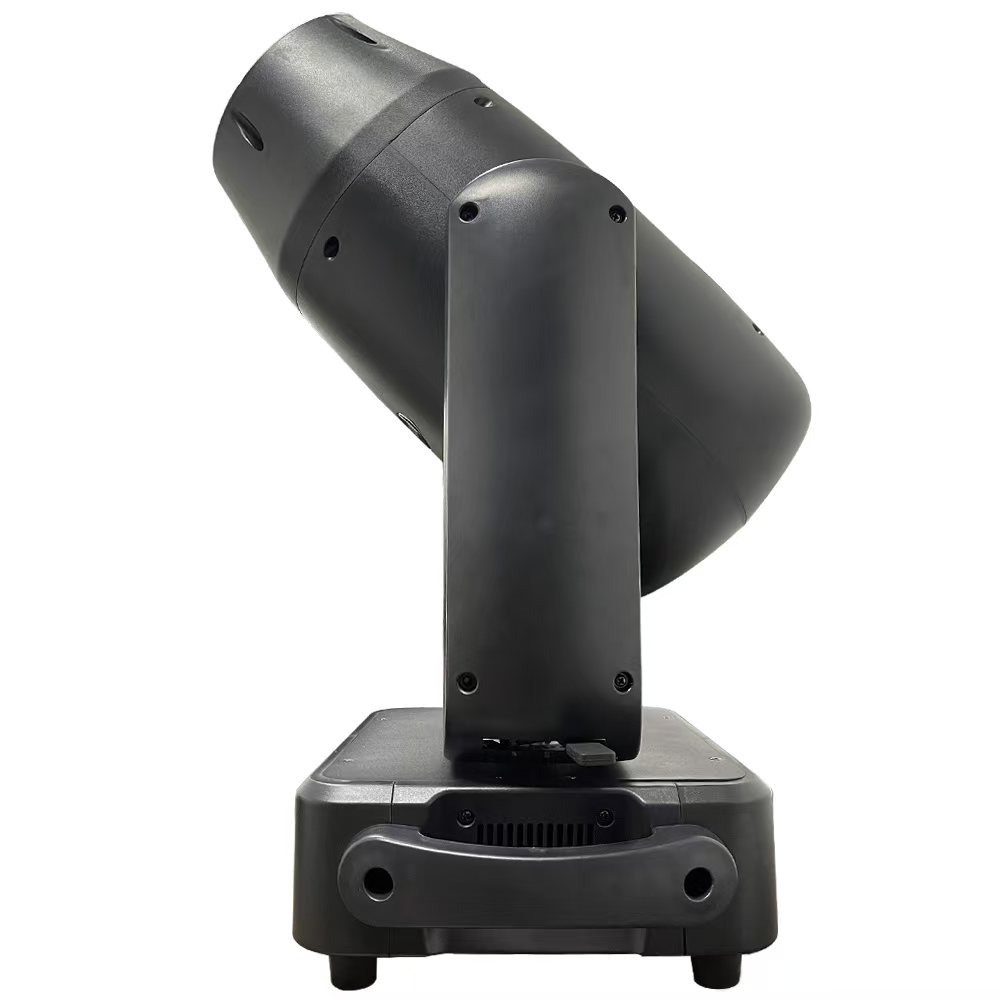

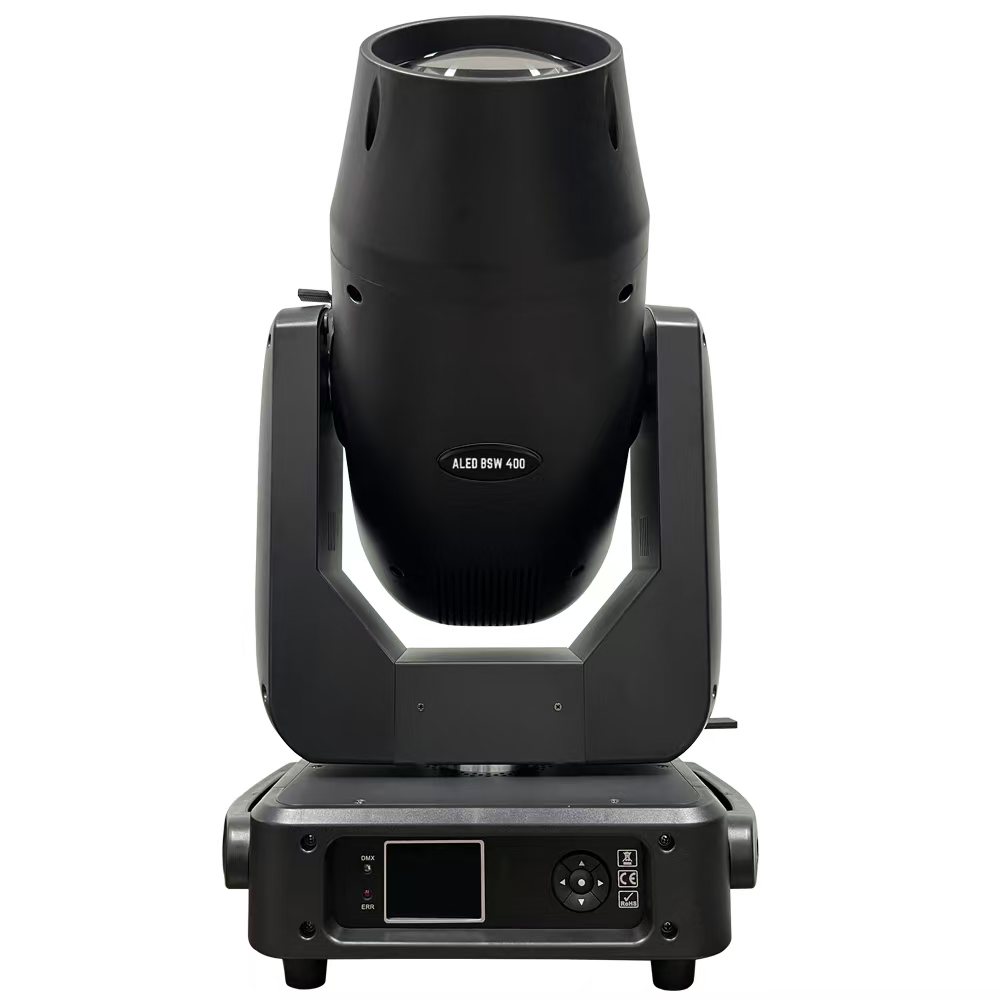

400W 3 in 1 Beam spot
400W 3 in 1 Beam spot
400W 3 in 1 Beam spot
400W 3 in 1 Beam spot
400W 3 in 1 Beam spot

400W 3 in 1 Beam spot

Price Interview

Price Interview

400W 3 in 1 Beam spot

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Video Effect lmage Other

Model:HM-BSW400

Color temperature: 8000K Color rendering index: 75

Input voltage: AC110V-240V/50-60HZ

Light source specification: 400W white LED module

Light source lifespan: 50000 hours

Luminous illuminance: 4 meters, 80000 lm

Rated power: 430W

Channel mode: 22 channels

Horizontal scanning: 540 degrees (16 bit precision scanning) with electronic error correction

Vertical scanning: 270 degrees (16 bit precision scanning) with electronic error correction

Dimming system: 0-100% linear adjustment

Focusing system: Linear adjustment from 4 meters to 50 meters

Atomization system: 1 independent atomization effect, soft and natural light spot

Magnification angle: 4-35 degrees

High speed strobe: 0-30 times/second Adjustable speed strobe effect Strobe macro function

Color: 12 colors+white light Color half color function

Color System: Independent CMYK+CTO color mixing system.

Fixed patterns: 12 fixed patterns+white light

Rotating pattern: 7 glass patterns, each glass pattern can be independently rotated in both forward and reverse directions

Prism system: Standard configuration includes a single 6-row prism and an 8-row prism? 8 prisms, each prism can independently rotate forward and backward

Macro functions: Console reset function, self driving mode, master-slave mode

Display mode: LCD display, button+touch dual operation mode

Control signal: International standard DMX512. With RDM function, online software upgrade is available, and address codes can be dialed

Cooling method: using axial fans to enhance cooling

Safety device: equipped with electronic temperature control overheating protection, automatic power-off protection for electronic temperature control in case of overheating system failure

Appearance material: High temperature resistant plastic

Working environment: -20 degrees, 40 degrees

Protection level: IP20

Net weight of product: 22.5kg

Product size: 38 * 27 * 65CM (L * W * H)


No comment

Previous : 380W Beam Next : 420W 3 in 1 Beam spot
Product Detail

Model:HM-BSW400

Color temperature: 8000K Color rendering index: 75

Input voltage: AC110V-240V/50-60HZ

Light source specification: 400W white LED module

Light source lifespan: 50000 hours

Luminous illuminance: 4 meters, 80000 lm

Rated power: 430W

Channel mode: 22 channels

Horizontal scanning: 540 degrees (16 bit precision scanning) with electronic error correction

Vertical scanning: 270 degrees (16 bit precision scanning) with electronic error correction

Dimming system: 0-100% linear adjustment

Focusing system: Linear adjustment from 4 meters to 50 meters

Atomization system: 1 independent atomization effect, soft and natural light spot

Magnification angle: 4-35 degrees

High speed strobe: 0-30 times/second Adjustable speed strobe effect Strobe macro function

Color: 12 colors+white light Color half color function

Color System: Independent CMYK+CTO color mixing system.

Fixed patterns: 12 fixed patterns+white light

Rotating pattern: 7 glass patterns, each glass pattern can be independently rotated in both forward and reverse directions

Prism system: Standard configuration includes a single 6-row prism and an 8-row prism? 8 prisms, each prism can independently rotate forward and backward

Macro functions: Console reset function, self driving mode, master-slave mode

Display mode: LCD display, button+touch dual operation mode

Control signal: International standard DMX512. With RDM function, online software upgrade is available, and address codes can be dialed

Cooling method: using axial fans to enhance cooling

Safety device: equipped with electronic temperature control overheating protection, automatic power-off protection for electronic temperature control in case of overheating system failure

Appearance material: High temperature resistant plastic

Working environment: -20 degrees, 40 degrees

Protection level: IP20

Net weight of product: 22.5kg

Product size: 38 * 27 * 65CM (L * W * H)
