480W Beam
480W Beam
480W Beam
480W Beam
480W Beam
480W Beam
480W Beam

480W Beam

Price Interview

Price Interview

480W Beam

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Video Effect lmage Other

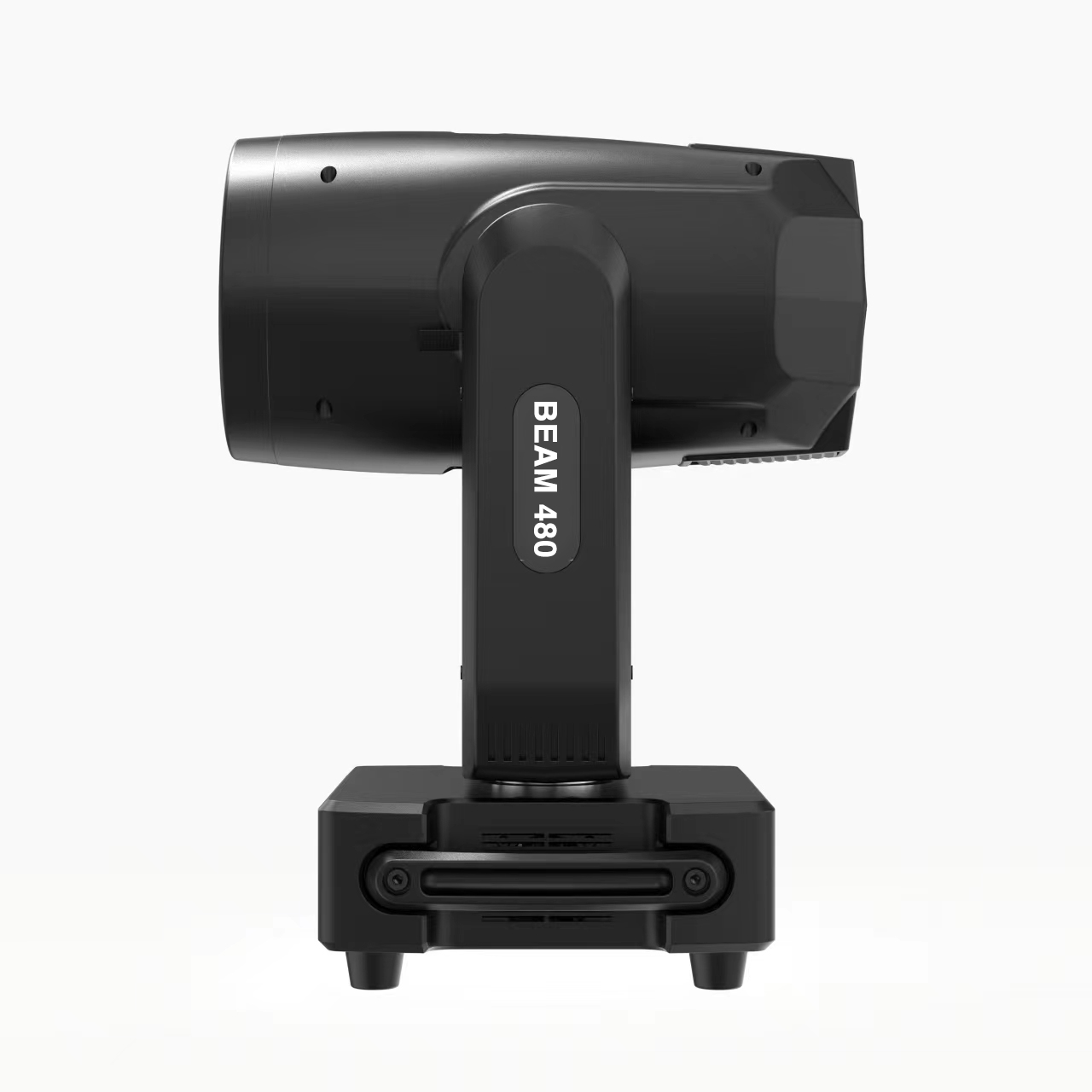

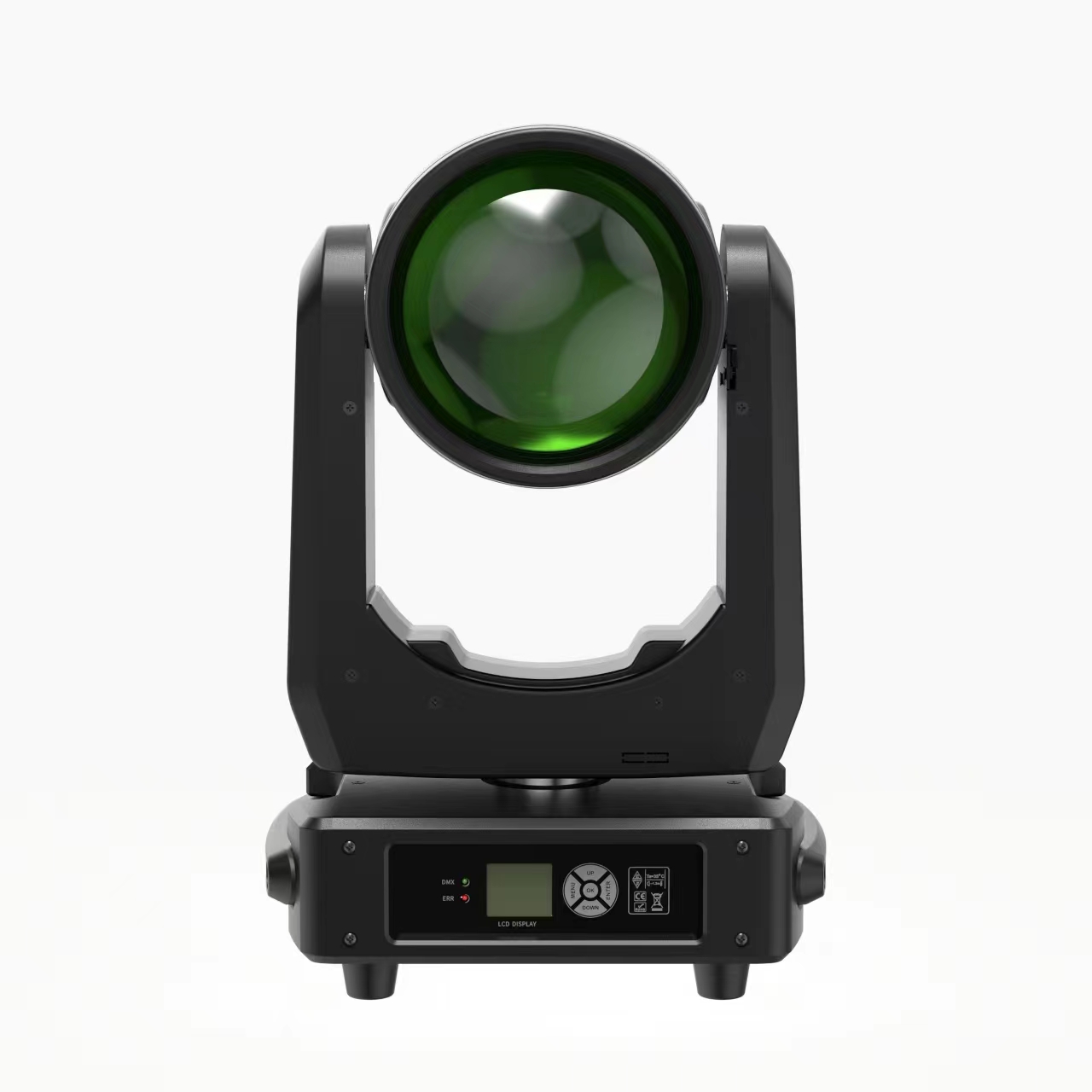

Model:HM-B480

480W beam shaking head lamp

Power supply: AC100-240V, 50/60Hz

Total power: 700W

Bulb model: Philips 420W/Bull Tail Bubble 420W/Osram 461W

The luminous flux is 7950lm, and the color temperature can reach 8500K

Output aperture: 180mm MA

Ballast: Electronic Inductive Ballast

Control mode: DMX512/WMDMX/self-propelled

Channel: 16 channels

Beautiful dot matrix display with four light touch switches, capable of reversing 180 ° display

Color Plate: A color plate, each consisting of 14 color chips+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect.

Pattern disc: Fixed pattern disc, 14 pattern effects+white light

Prism: 48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotated independently in both directions

Bidirectional rotation, adjustable rotation speed.

Focusing: Linear focusing, from near to far.

Equipped with atomization function and adjustable atomization speed.

0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function, mechanical strobe is 1-12 F.P.S.

A color palette, each consisting of 14 color patches+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect

Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation

Horizontal 540 °, 8Bit/16Bit fine tuned

Vertical 270 °, 8Bit/16Bit fine tuned

Equipped with horizontal and vertical fine automatic error correction functions.

Overheat protection

IP protection level: IP20

AC/DC switch power supply.

LCD display screen.

Size: 280 x 260 x 650mm

Net weight: 17.5Kg


No comment

Previous : 420W 3 in 1 Beam spot Next : Elf100Beam 1
Product Detail

Model:HM-B480

480W beam shaking head lamp

Power supply: AC100-240V, 50/60Hz

Total power: 700W

Bulb model: Philips 420W/Bull Tail Bubble 420W/Osram 461W

The luminous flux is 7950lm, and the color temperature can reach 8500K

Output aperture: 180mm MA

Ballast: Electronic Inductive Ballast

Control mode: DMX512/WMDMX/self-propelled

Channel: 16 channels

Beautiful dot matrix display with four light touch switches, capable of reversing 180 ° display

Color Plate: A color plate, each consisting of 14 color chips+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect.

Pattern disc: Fixed pattern disc, 14 pattern effects+white light

Prism: 48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotated independently in both directions

Bidirectional rotation, adjustable rotation speed.

Focusing: Linear focusing, from near to far.

Equipped with atomization function and adjustable atomization speed.

0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function, mechanical strobe is 1-12 F.P.S.

A color palette, each consisting of 14 color patches+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect

Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation

Horizontal 540 °, 8Bit/16Bit fine tuned

Vertical 270 °, 8Bit/16Bit fine tuned

Equipped with horizontal and vertical fine automatic error correction functions.

Overheat protection

IP protection level: IP20

AC/DC switch power supply.

LCD display screen.

Size: 280 x 260 x 650mm

Net weight: 17.5Kg
