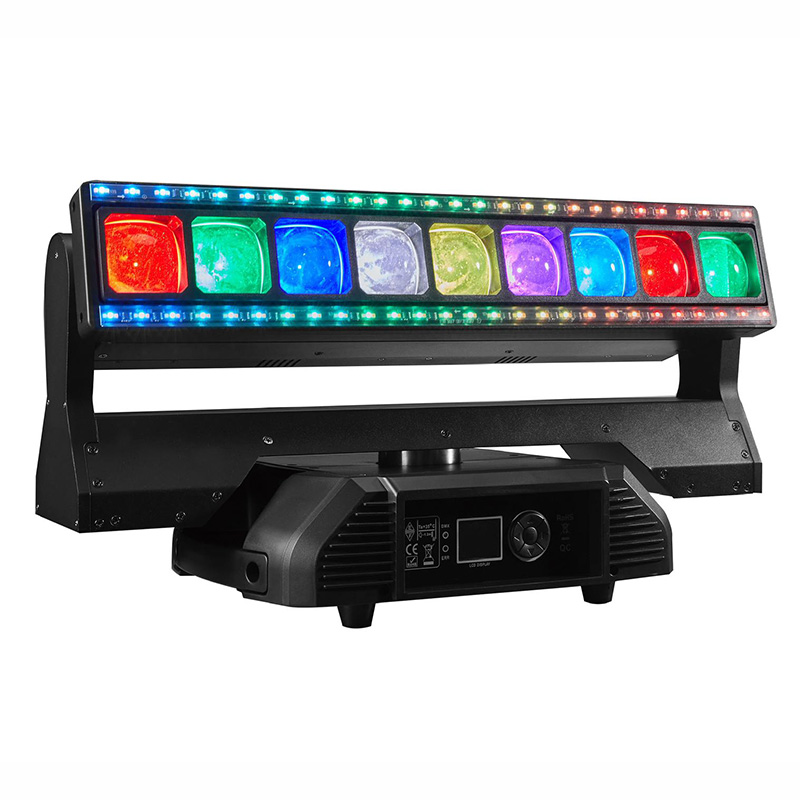

9·40W alligators

Price Interview

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Video Effect lmage Other

Model:LM-T940

Light source:

Beam end:

9 x 40W RGBW LED

Strobe terminal:

54 x 1W CW LED

54 x 1W WW LED

54x 0.5W RGB LED

White light color temperature: 6,300K

Light lux: 22,400 lm

LED life expectancy: 20,000 hours

Optical system

Zoom angle:

Beam angle: 2.8°-31° (beam end)

Spot angle: 5°-50° (beam end)

Control and procedures

5 keys

Control panel: LCD display

Control protocol: DMX512, RDM

DMX channel mode: 4 types

Channel mode: CH29, CH34, CH38, CH61

Passageway

Software upgrade: update the software through DMX connection

X-axis electrodeless rotation

Y-axis operation angle: 202°

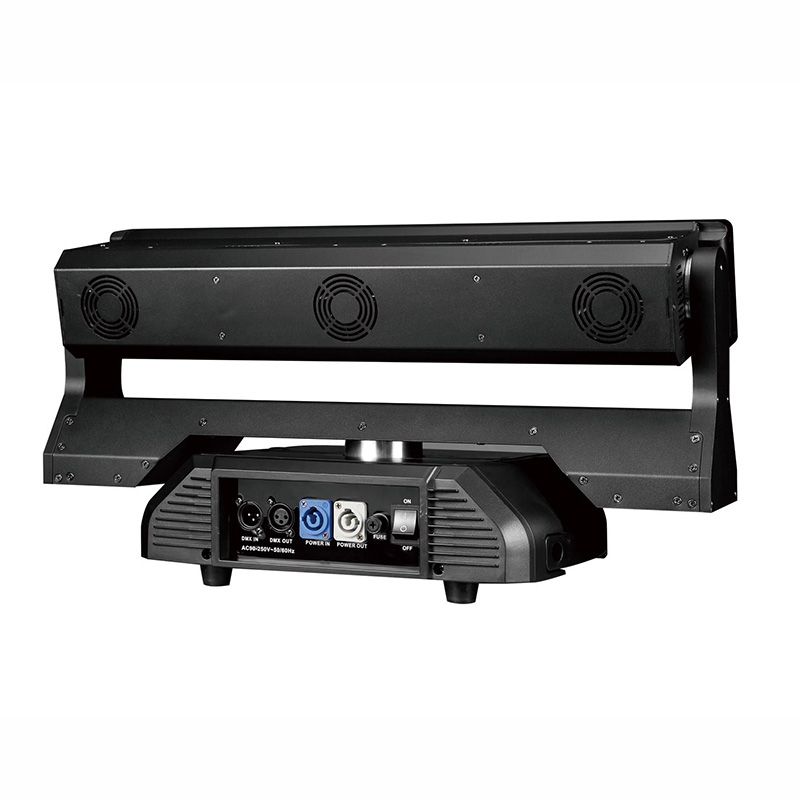

Electrical and interface

Input power supply: 180-240V~ 50/60Hz

Power: 500 W

Power outlet: power connector input/output

Signal input/output: three-core or five-core cannon head socket, RJ45

Product size 60 * 27 * 32.8

Single package size 66 * 34 * 39

Net weight of the product is 15.2kg

No comment

Previous : 7 vintage lights Next : 10·40W Beam

Product Detail

Model:LM-T940

Light source:

Beam end:

9 x 40W RGBW LED

Strobe terminal:

54 x 1W CW LED

54 x 1W WW LED

54x 0.5W RGB LED

White light color temperature: 6,300K

Light lux: 22,400 lm

LED life expectancy: 20,000 hours

Optical system

Zoom angle:

Beam angle: 2.8°-31° (beam end)

Spot angle: 5°-50° (beam end)

Control and procedures

5 keys

Control panel: LCD display

Control protocol: DMX512, RDM

DMX channel mode: 4 types

Channel mode: CH29, CH34, CH38, CH61

Passageway

Software upgrade: update the software through DMX connection

X-axis electrodeless rotation

Y-axis operation angle: 202°

Electrical and interface

Input power supply: 180-240V~ 50/60Hz

Power: 500 W

Power outlet: power connector input/output

Signal input/output: three-core or five-core cannon head socket, RJ45

Product size 60 * 27 * 32.8

Single package size 66 * 34 * 39

Net weight of the product is 15.2kg
