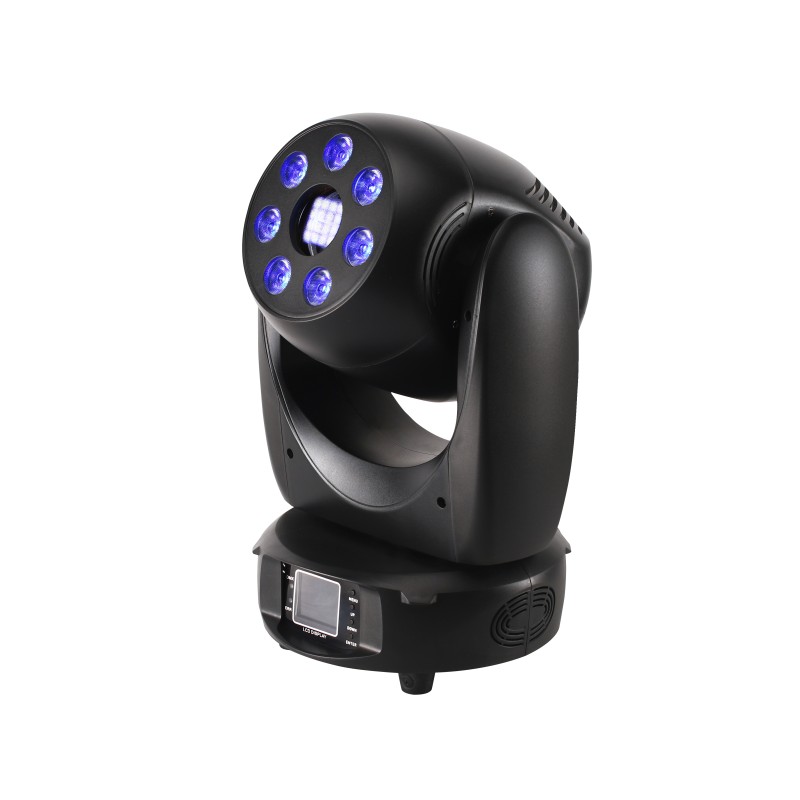

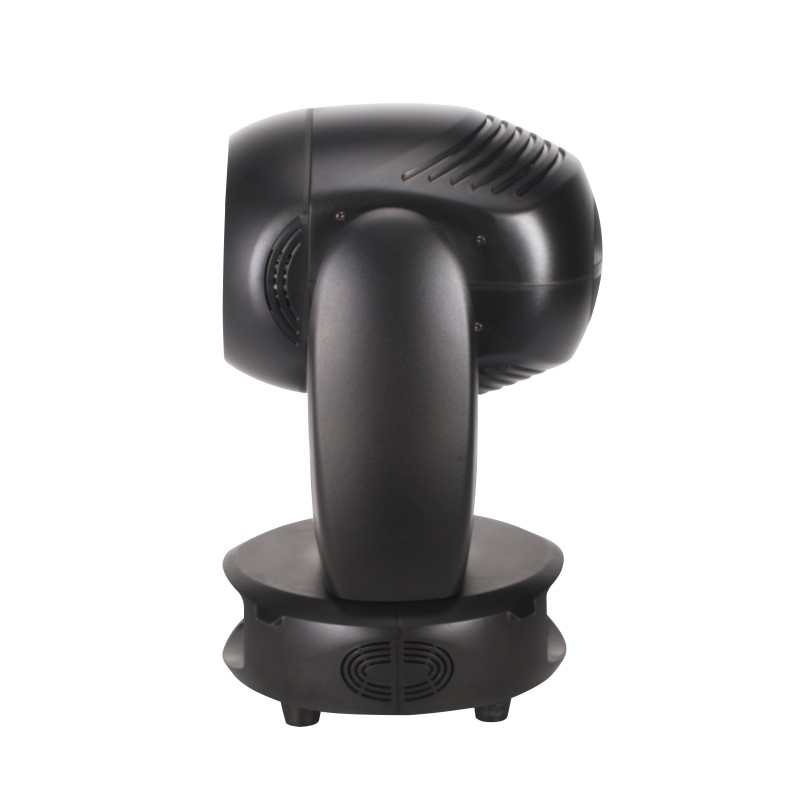

Elf120Spot 1

✨Have RDM function ,Address code of control station adjustment，Small size and easy to transport,
✨LED light source, long life and environmental protection;Faster and more stable; Strong and sharp beam;
✨Very suitable for bars, clubs, music restaurants, KTV halls and other entertainment venues。

Price Interview

Interview

Select the number of specifications

Please check the product information you want!

Download Annex

Product Detail Video Effect lmage Other

Model:LM-Elf S1

Characteristic: Have RDM function ，Address code of control station adjustment，Small size and easy to transport,

LED light source, long life and environmental protection;Faster and more stable; Strong and sharp beam;

Very suitable for bars, clubs, music restaurants, KTV halls and other entertainment venues。

Technical Parameters

Voltage: AC100-240V 50/60HZ

Light source : 120W Super brightness LED, 7 RGBW 4 in 1 LED (Can be used for dyeing effect)

Power: 200W

Operating mode: DMX512, master-slave, automatic, sound

Control channel: 16 channels / 20 channels

Dimming: 0-100%LED Linear dimming

Strobe: High-speed electronic strobe

Horizontal and vertical: 540°、270°；16bit

Rotate the gobo: 6 Graphics(4 metal graphics + 2 glass graphics)

Fixed gobo: 8 Graphics

Color wheel: 7 colors plus white light, half color, rainbow effect

Prism: 3 prism

Focusing: electronic focusing

Spot angle: 16 °

Wash angle: 25 °

Display board: color screen LCD display，Can switch between Chinese and English，Forward and reverse display

Size: 22.5 * 21 * 36CM

Net weight：6.3KG

No comment

Previous : Elf100Beam 1 Next : Elf4040Zoom 1

Product Detail

Model:LM-Elf S1

Characteristic: Have RDM function ，Address code of control station adjustment，Small size and easy to transport,

LED light source, long life and environmental protection;Faster and more stable; Strong and sharp beam;

Very suitable for bars, clubs, music restaurants, KTV halls and other entertainment venues。

Technical Parameters

Voltage: AC100-240V 50/60HZ

Light source : 120W Super brightness LED, 7 RGBW 4 in 1 LED (Can be used for dyeing effect)

Power: 200W

Operating mode: DMX512, master-slave, automatic, sound

Control channel: 16 channels / 20 channels

Dimming: 0-100%LED Linear dimming

Strobe: High-speed electronic strobe

Horizontal and vertical: 540°、270°；16bit

Rotate the gobo: 6 Graphics(4 metal graphics + 2 glass graphics)

Fixed gobo: 8 Graphics

Color wheel: 7 colors plus white light, half color, rainbow effect

Prism: 3 prism

Focusing: electronic focusing

Spot angle: 16 °

Wash angle: 25 °

Display board: color screen LCD display，Can switch between Chinese and English，Forward and reverse display

Size: 22.5 * 21 * 36CM

Net weight：6.3KG

Video

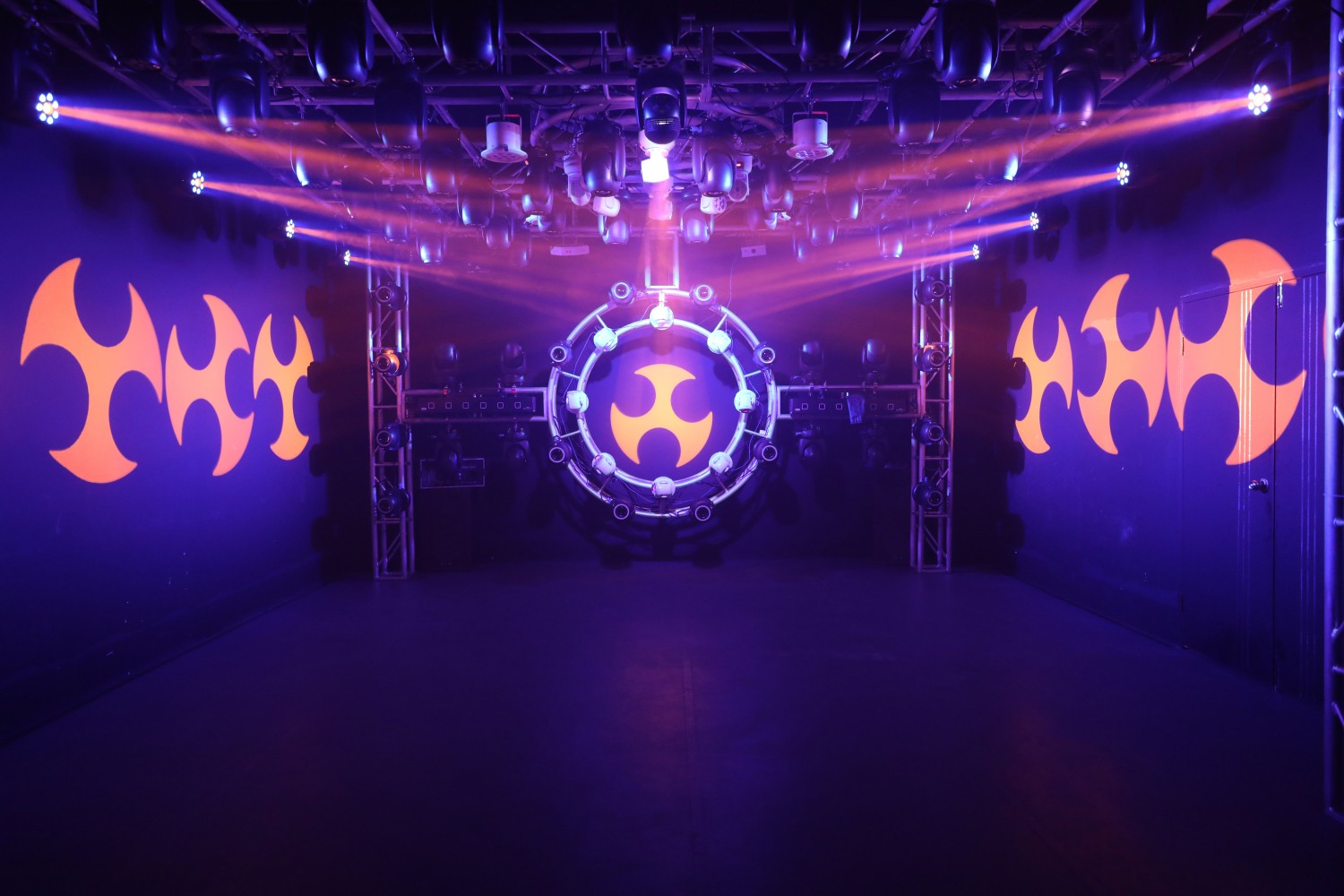

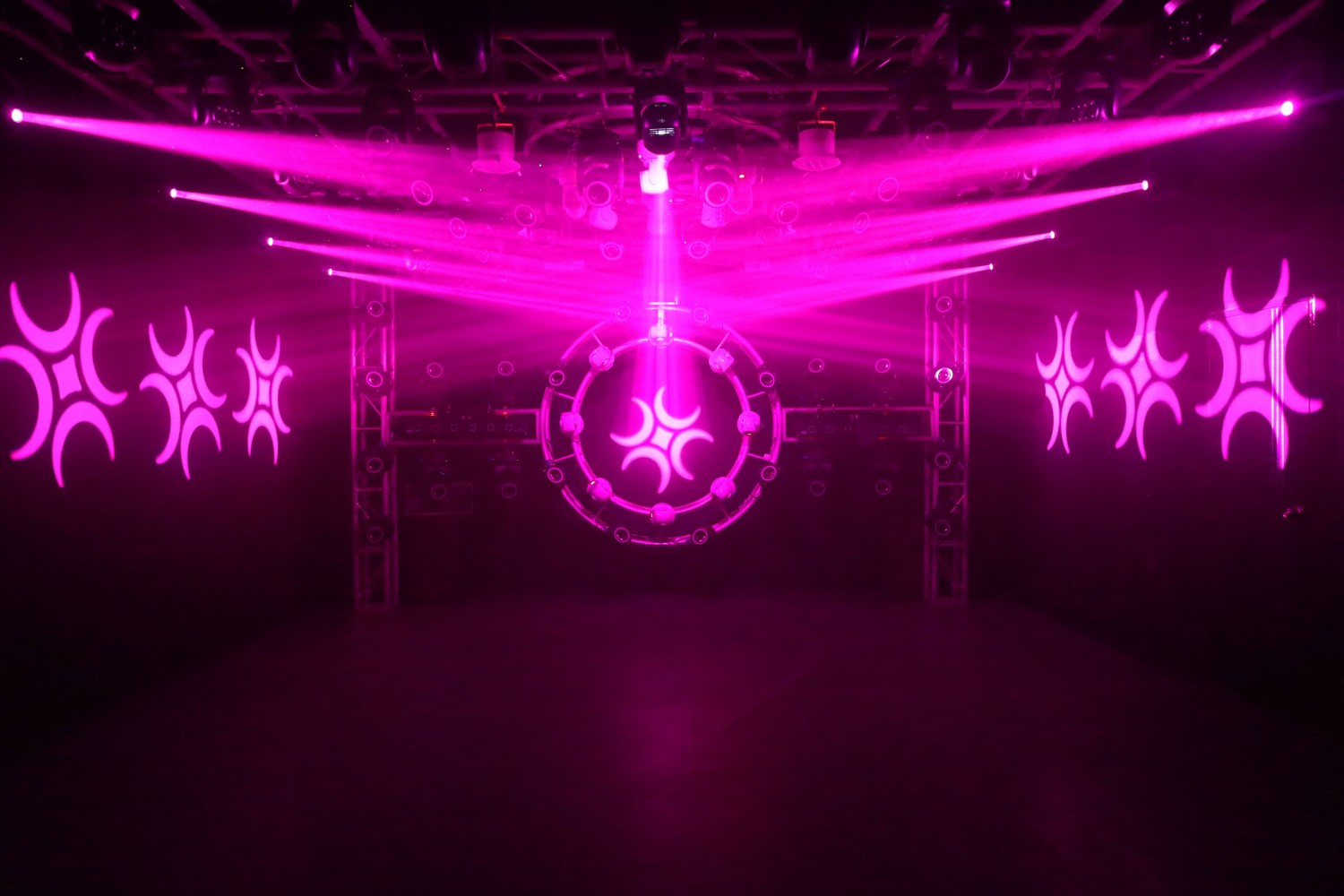

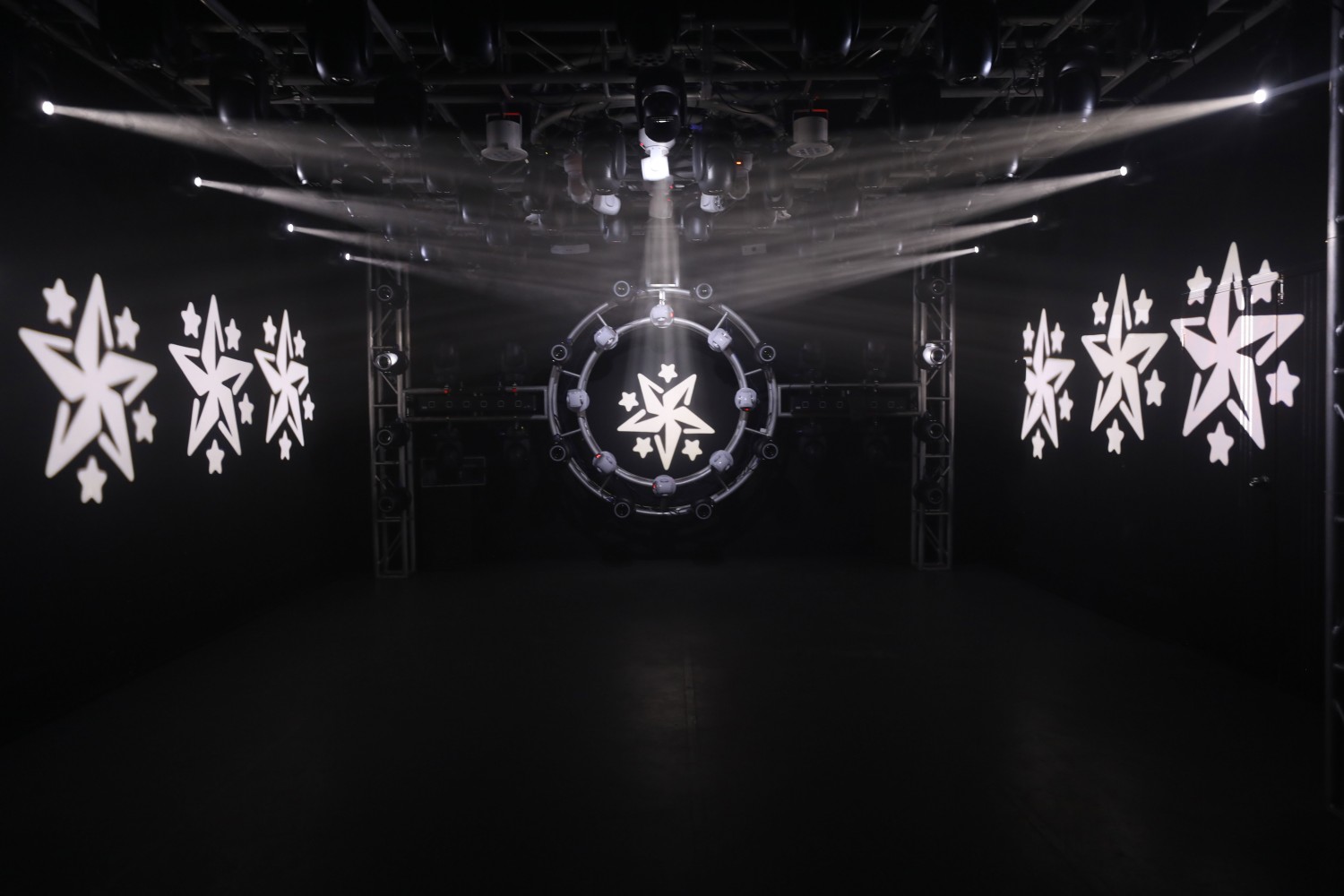

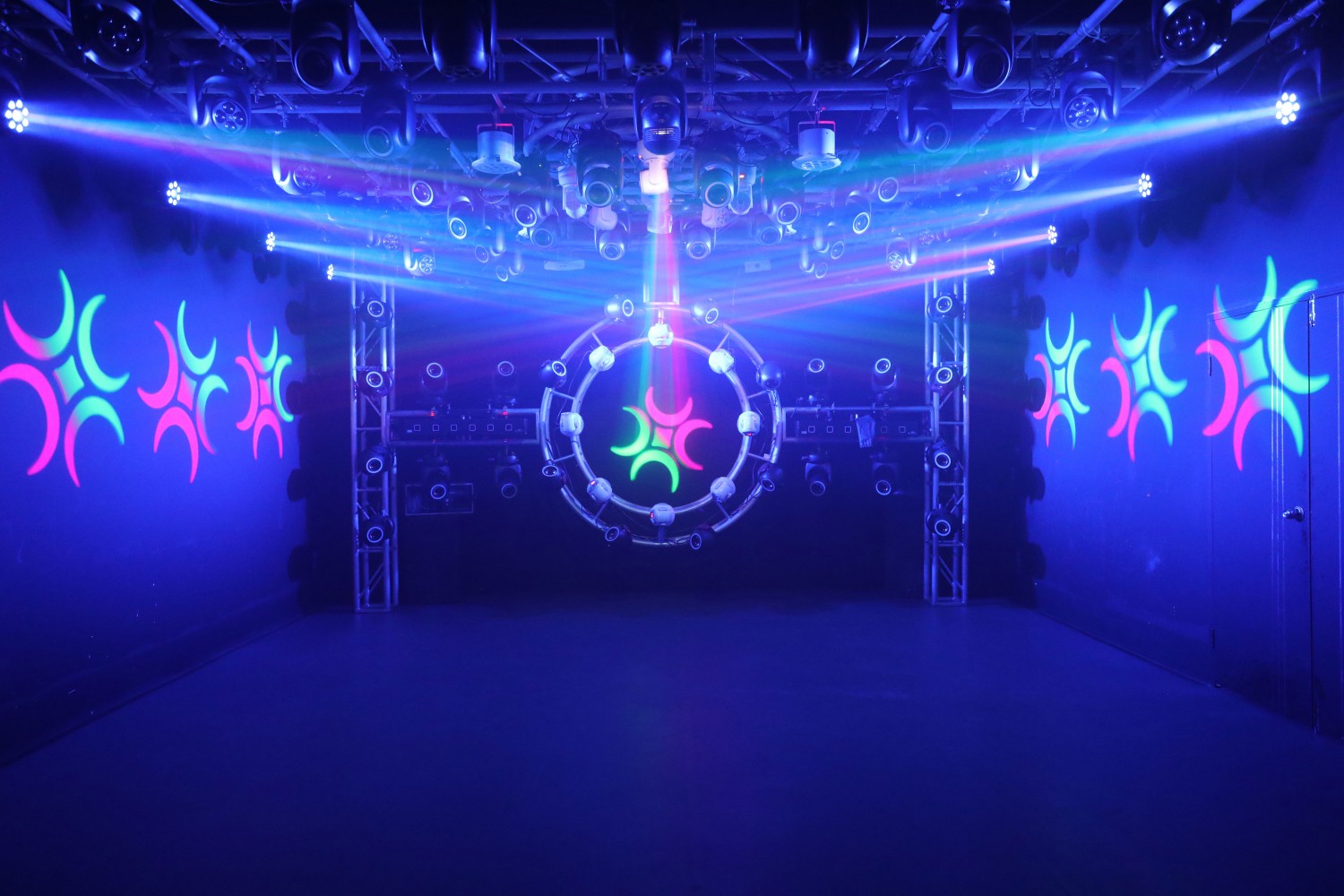

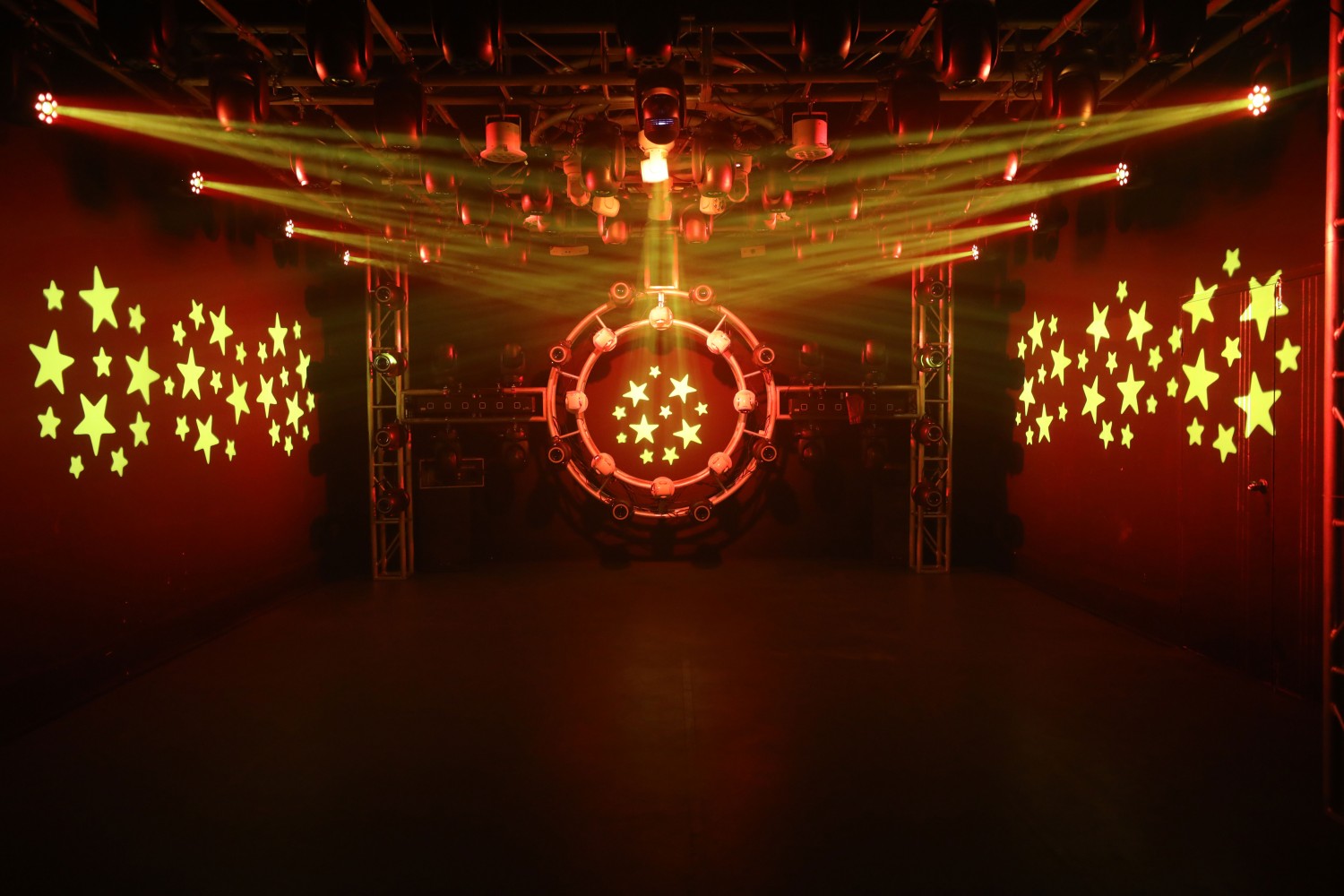

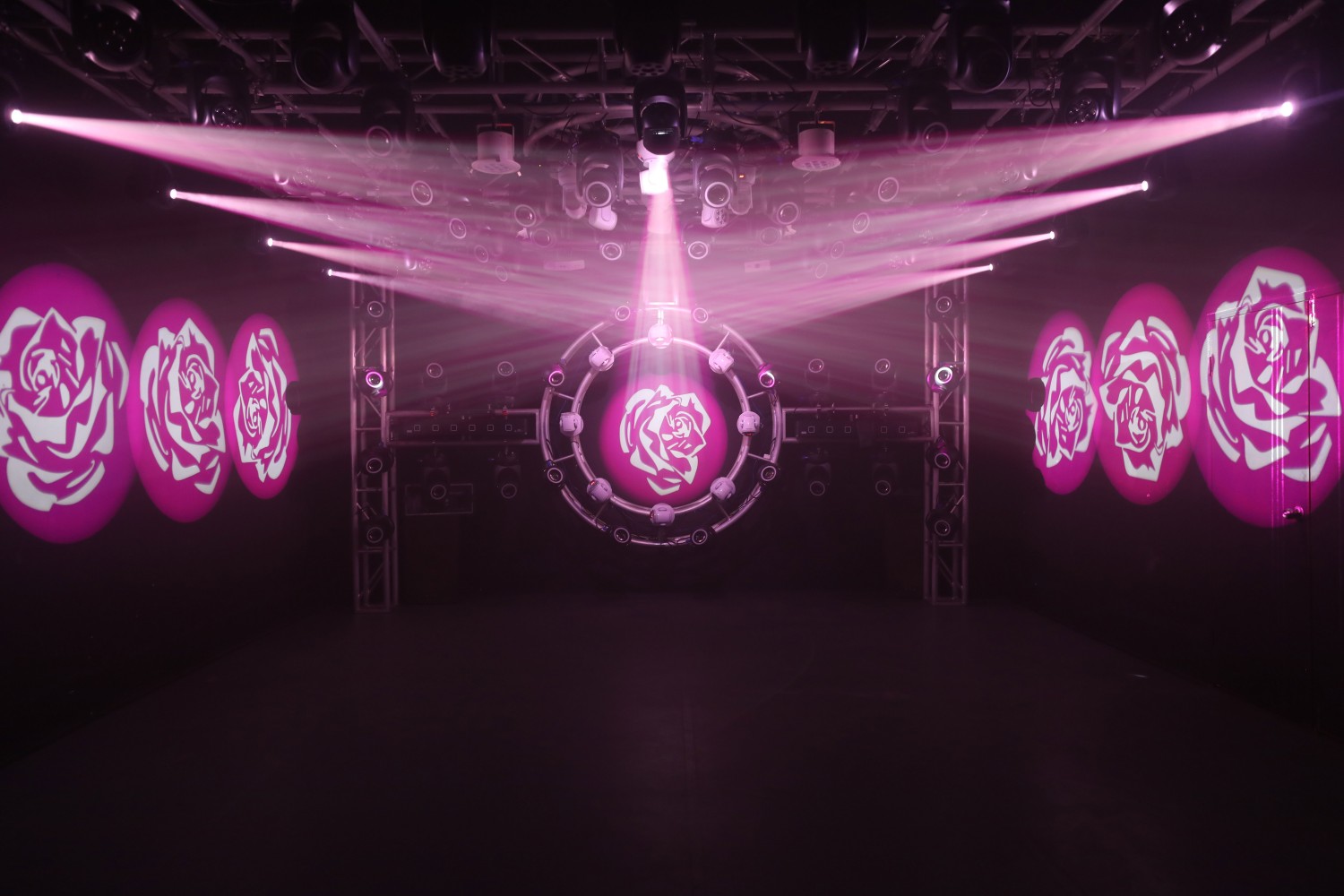

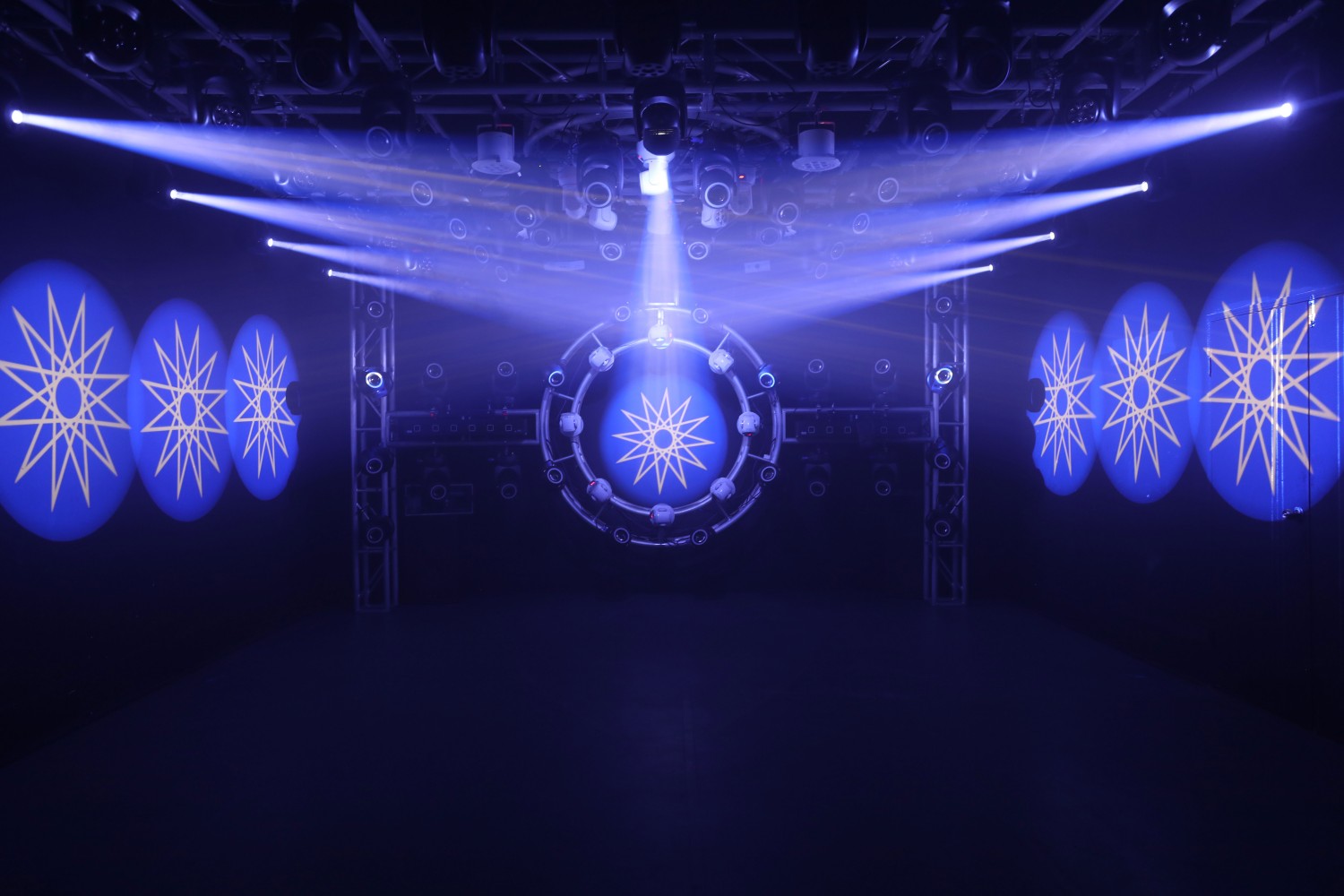

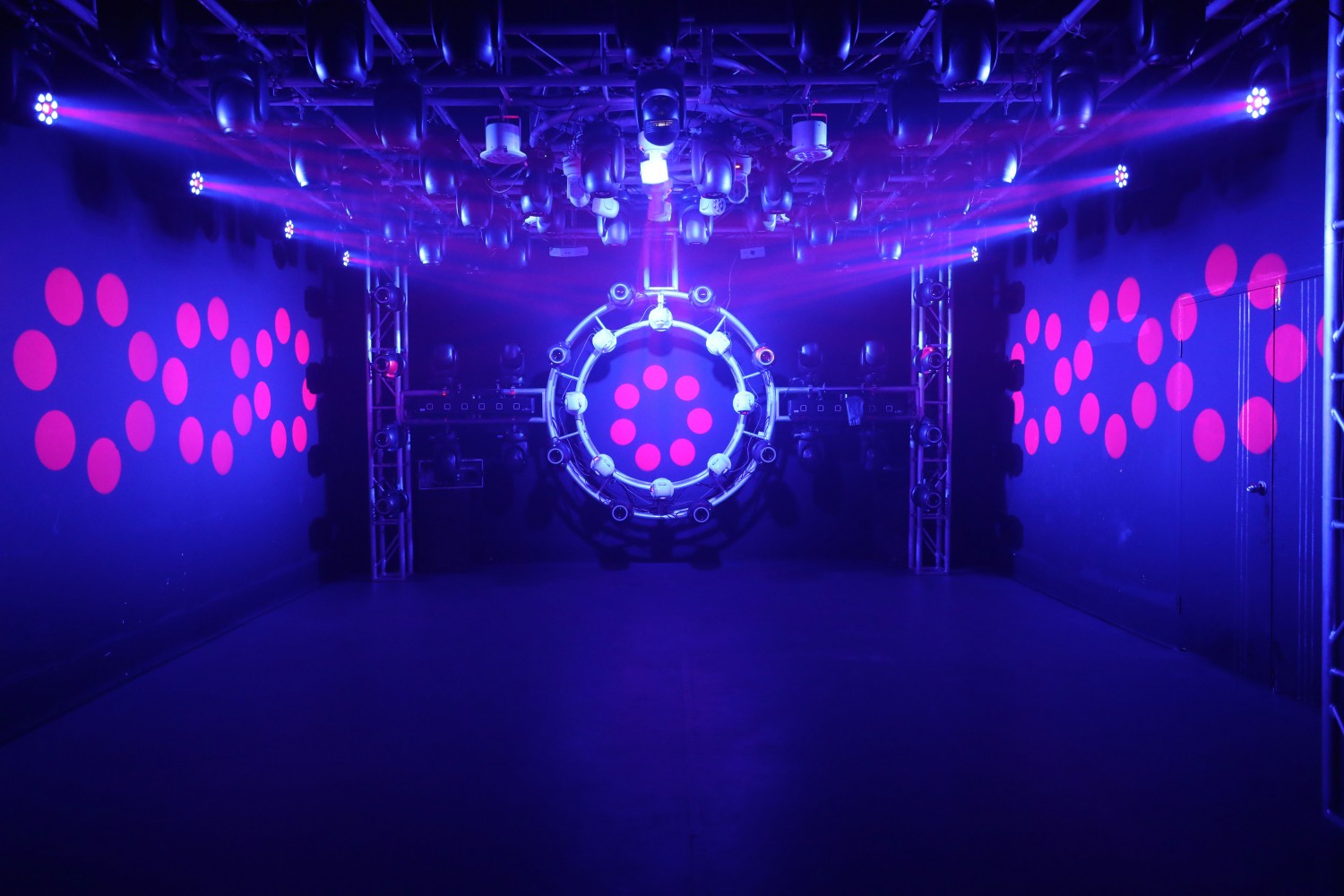

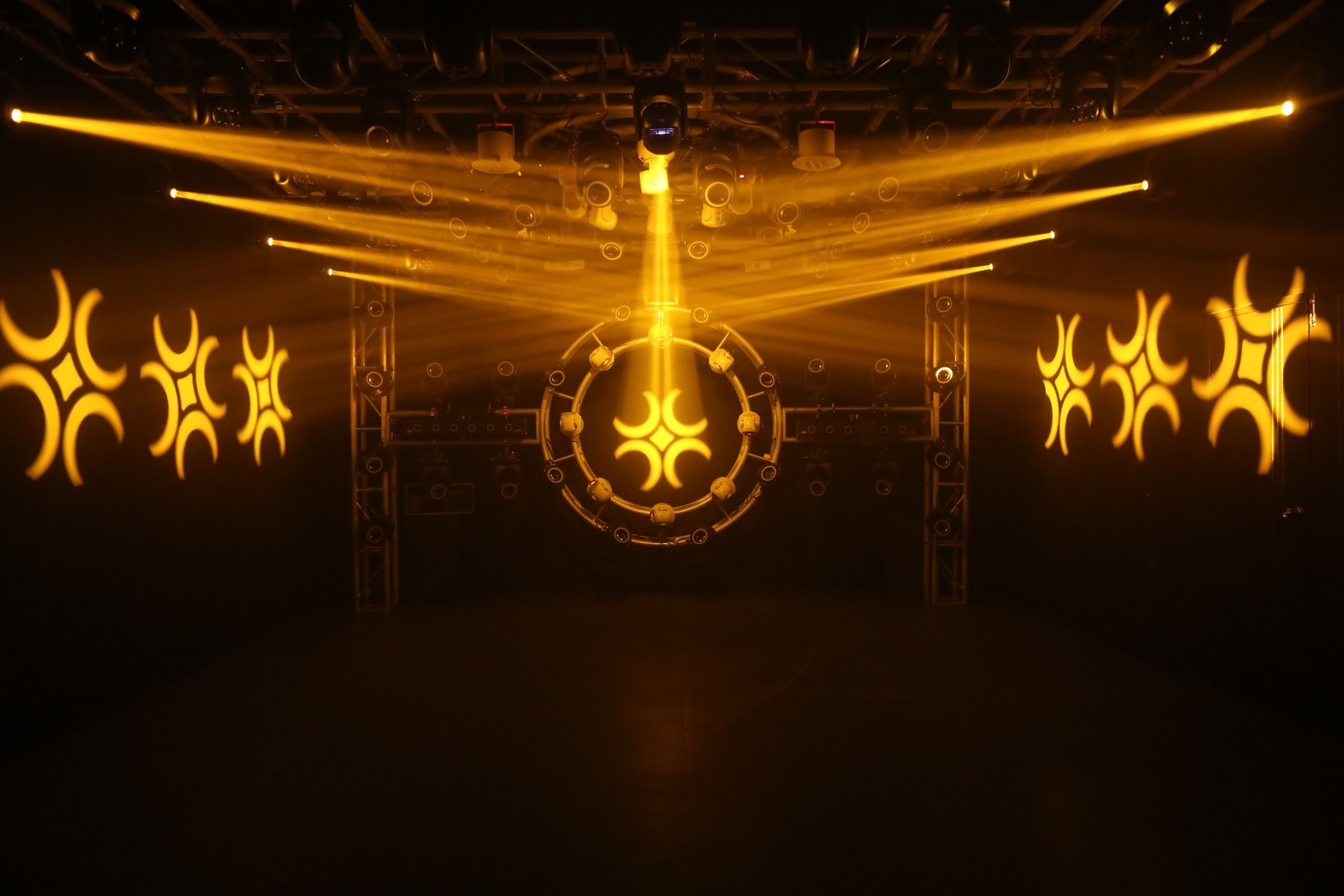

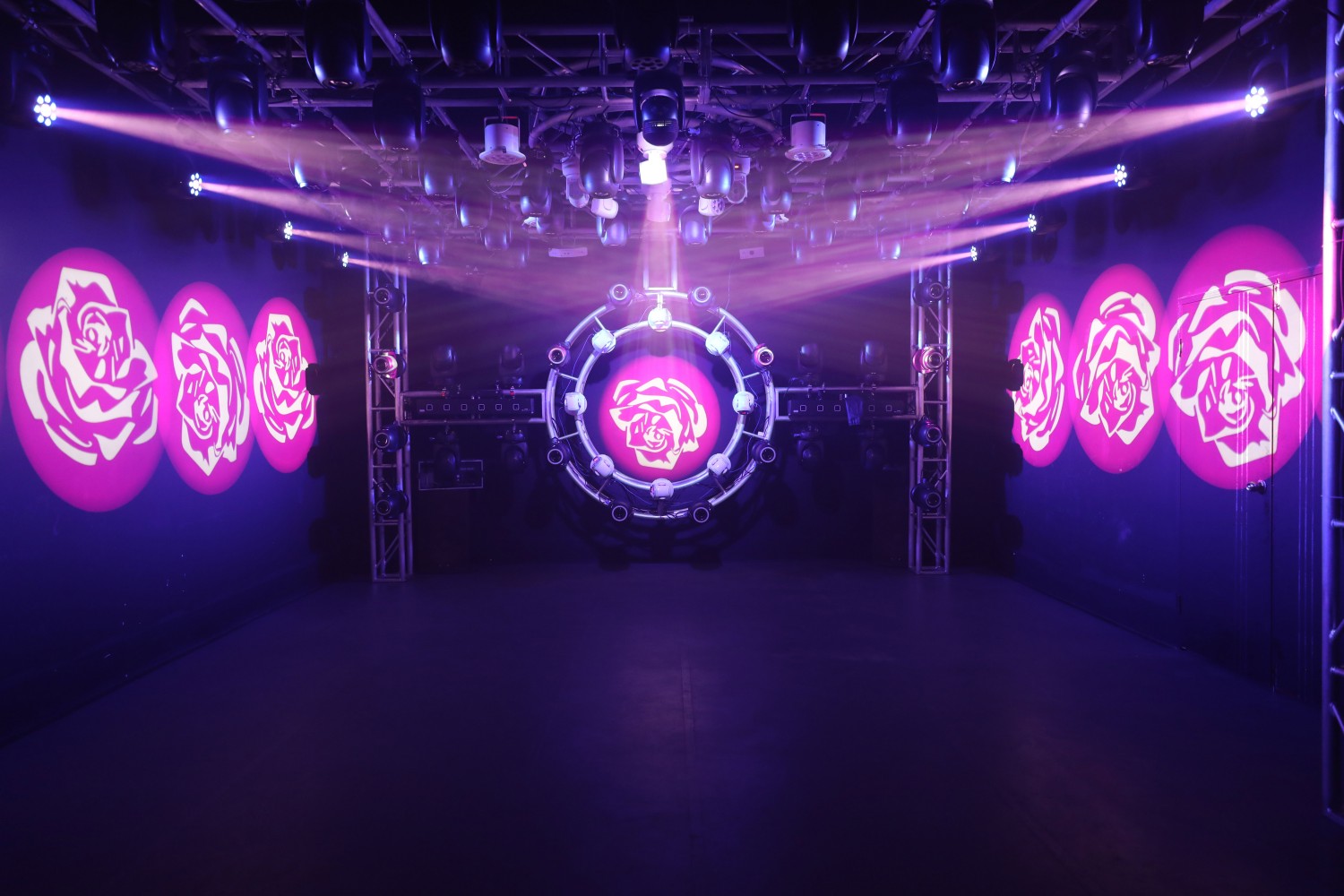

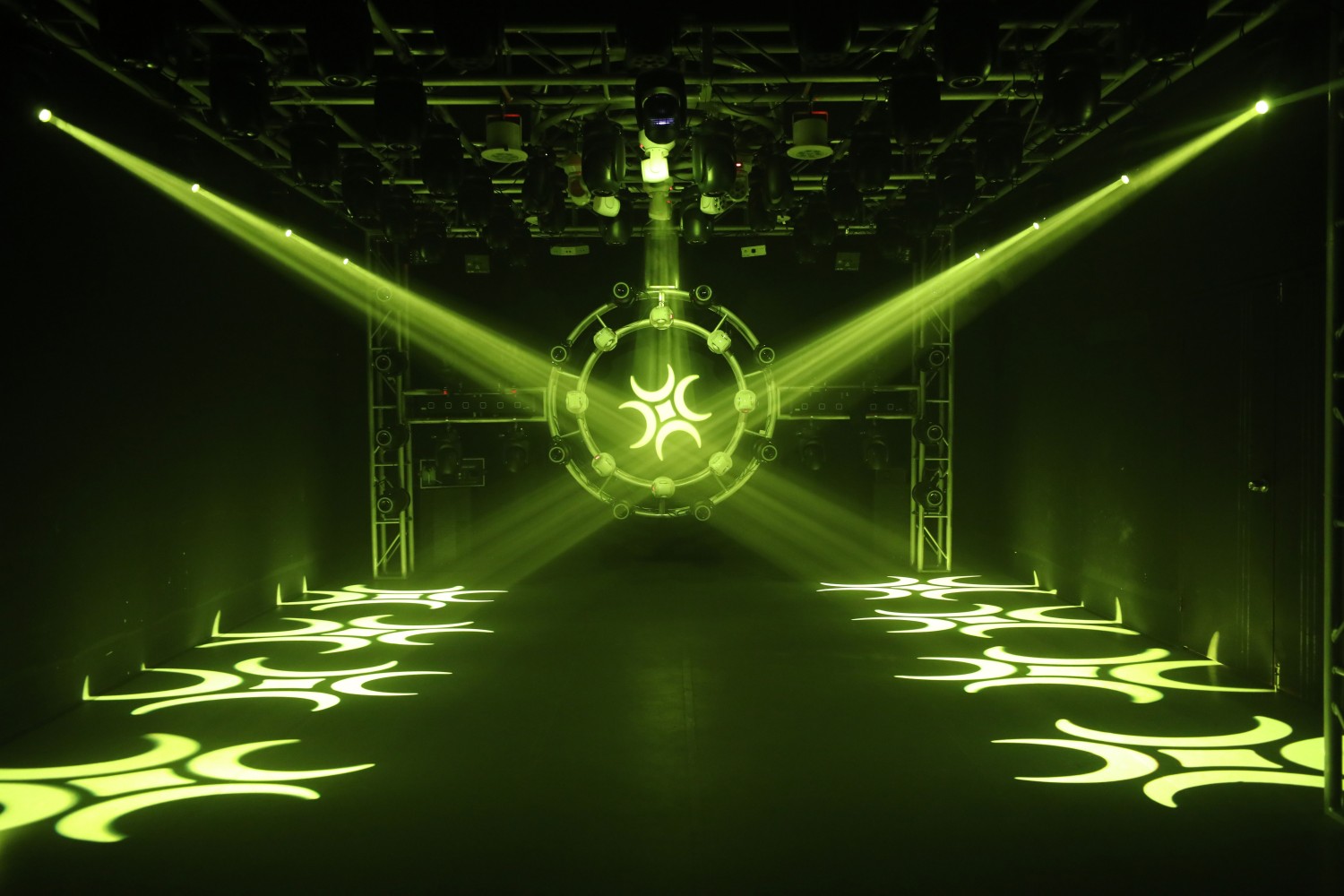

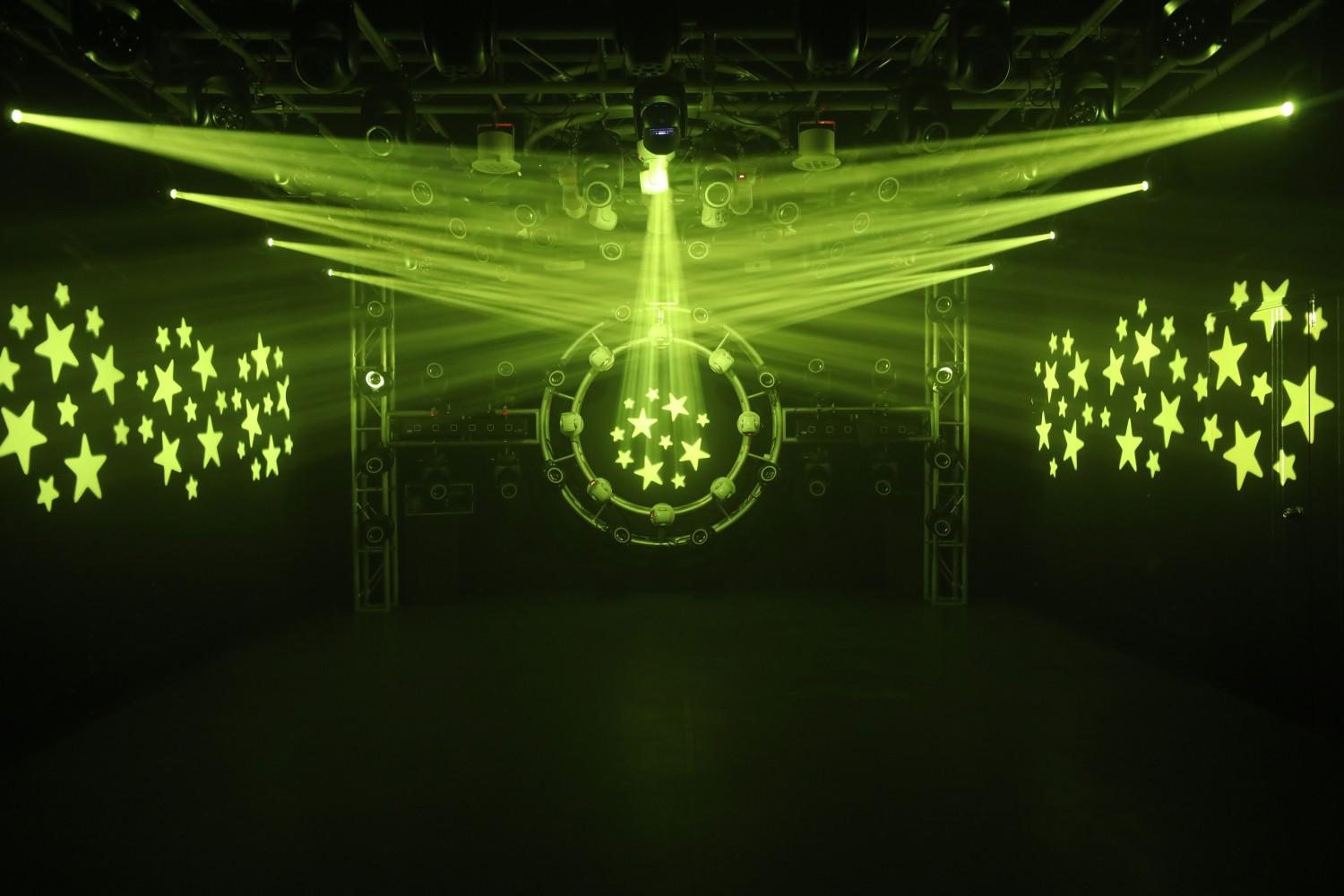

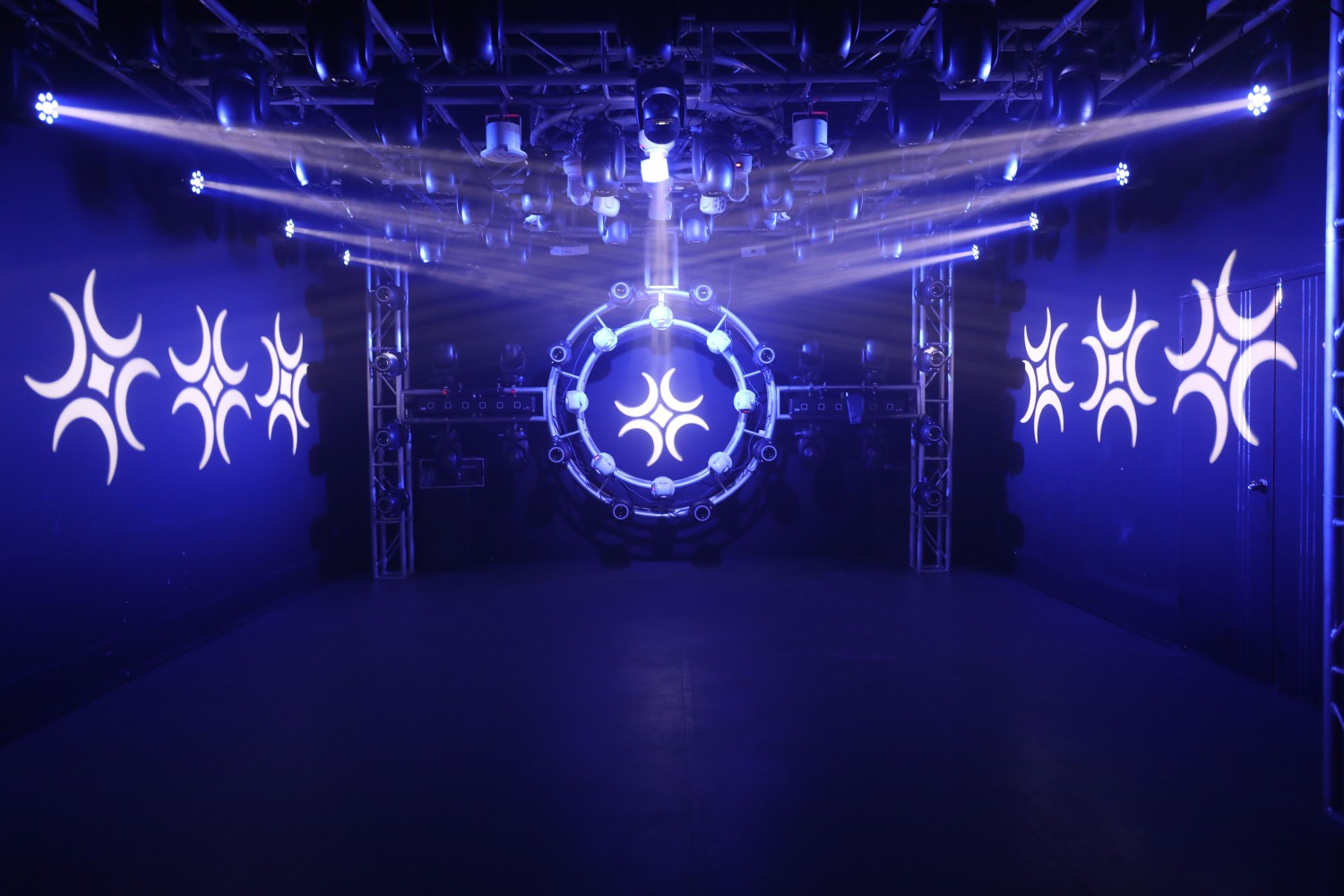

Effect lmage
