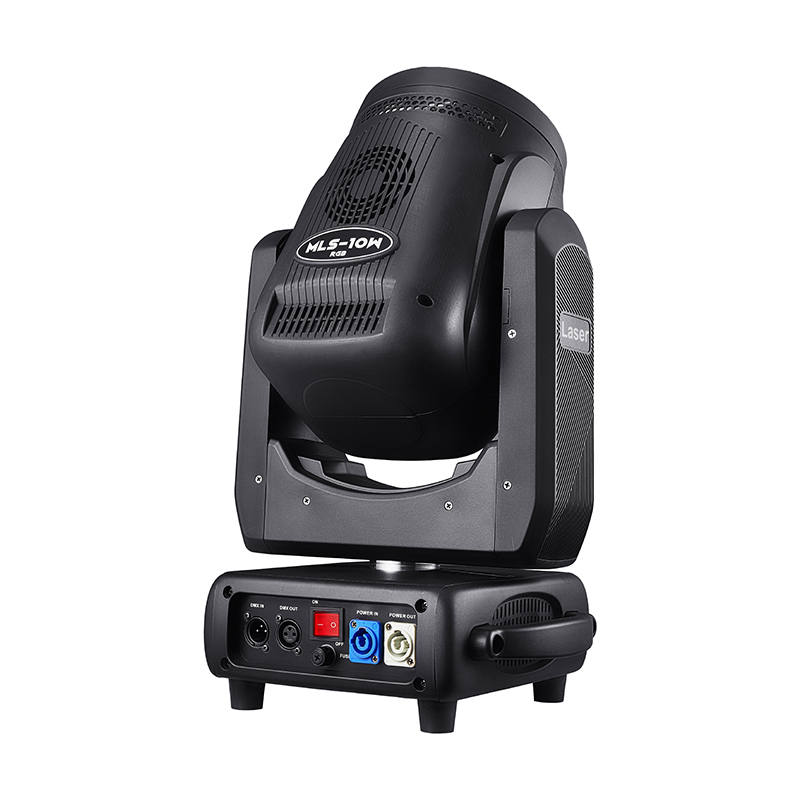

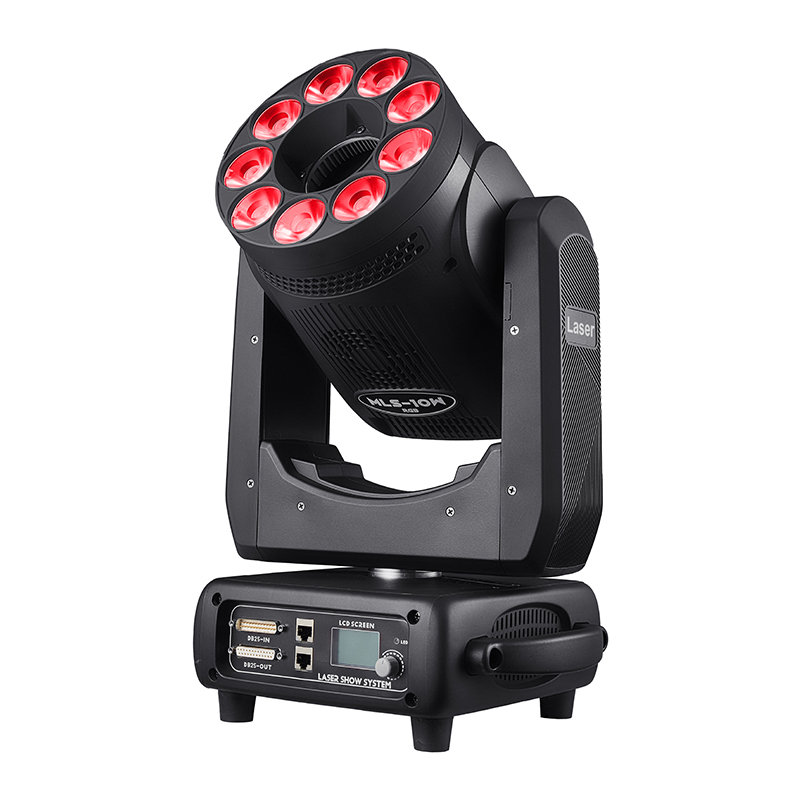

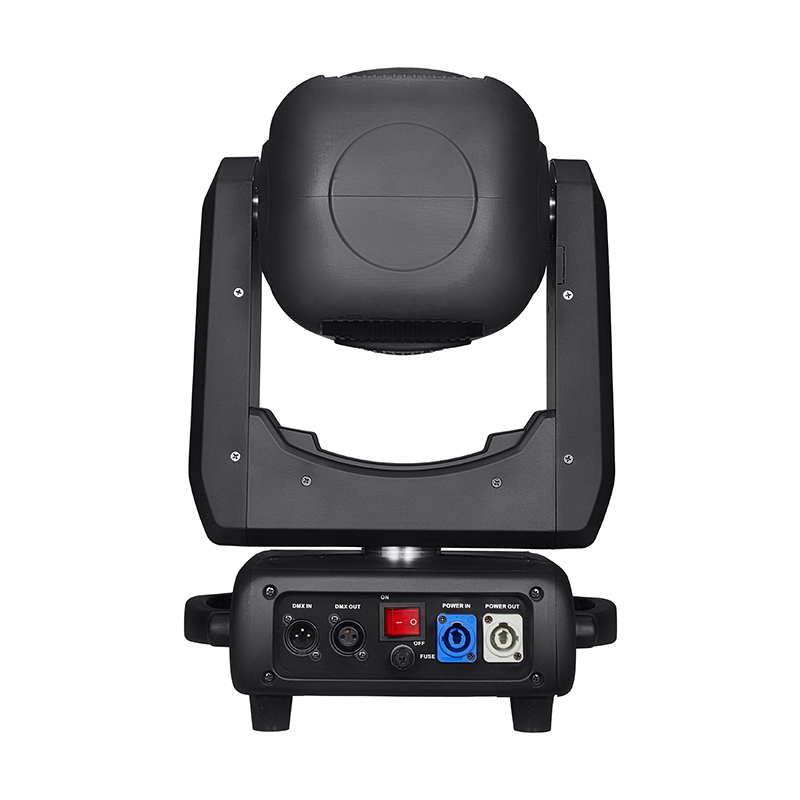

10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing
10W shaking head laser+LED dyeing

10W shaking head laser+LED dyeing

Price Interview

Price Interview

10W shaking head laser+LED dyeing

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Video Effect lmage Other

Model:HM-LSZ10

Rated voltage: AC110-2220V

Shaking head laser+LED dyeing lamp

Rated frequency: 50-60Hz

Rated power: 300W

Laser color: RGB full-color

Laser power: RGB 10W/RGB 5W

Laser source: R3w/638nm G3w/525nm B4w/447nm/(5W-R1, G1, B3)

Laser pattern: 256 laser animation patterns

Modulation signal: TTL modulation (analog modulation)

Scanning system: galvanometer scanning 30KPPS

Scanning angle: plus or minus 20 degrees

Stepper motor: 2 two-phase 57 motors

Horizontal: 540 degrees Vertical: 270 degrees

LED dyeing configuration: 9 20W four in one high brightness LED beads

Control mode: DMX512, voice control, self-propelled, computer ILDA interface, network cable Art Net,

Control channels: 30 DMX512 control channels

DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color change, and resizing.

Function: Can be controlled by laser software such as pangolin QSFB3/FB4 or Phoenix.

The ILDA control adopts an automatic electronic transfer switch, which has scanning system error protection and laser shutdown protection.

Instructions for use: The ambient temperature should be controlled between 0~35 ℃. A dry and dust-free environment can reduce laser power attenuation and extend the lifespan of the lamp

Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc

Cooling system: fan forced cooling of Shaking head laser+LED dye light

Bare lamp size: 32 * 25.5 * 52cm

Net weight: 11KG

Packaging size: 55.5 * 38 * 43cm

Gross weight: 14KG


No comment

Previous : 5W 10W 15W shaking head laser Next : 19·15W Zoom
Product Detail

Model:HM-LSZ10

Rated voltage: AC110-2220V

Shaking head laser+LED dyeing lamp

Rated frequency: 50-60Hz

Rated power: 300W

Laser color: RGB full-color

Laser power: RGB 10W/RGB 5W

Laser source: R3w/638nm G3w/525nm B4w/447nm/(5W-R1, G1, B3)

Laser pattern: 256 laser animation patterns

Modulation signal: TTL modulation (analog modulation)

Scanning system: galvanometer scanning 30KPPS

Scanning angle: plus or minus 20 degrees

Stepper motor: 2 two-phase 57 motors

Horizontal: 540 degrees Vertical: 270 degrees

LED dyeing configuration: 9 20W four in one high brightness LED beads

Control mode: DMX512, voice control, self-propelled, computer ILDA interface, network cable Art Net,

Control channels: 30 DMX512 control channels

DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color change, and resizing.

Function: Can be controlled by laser software such as pangolin QSFB3/FB4 or Phoenix.

The ILDA control adopts an automatic electronic transfer switch, which has scanning system error protection and laser shutdown protection.

Instructions for use: The ambient temperature should be controlled between 0~35 ℃. A dry and dust-free environment can reduce laser power attenuation and extend the lifespan of the lamp

Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc

Cooling system: fan forced cooling of Shaking head laser+LED dye light

Bare lamp size: 32 * 25.5 * 52cm

Net weight: 11KG

Packaging size: 55.5 * 38 * 43cm

Gross weight: 14KG
