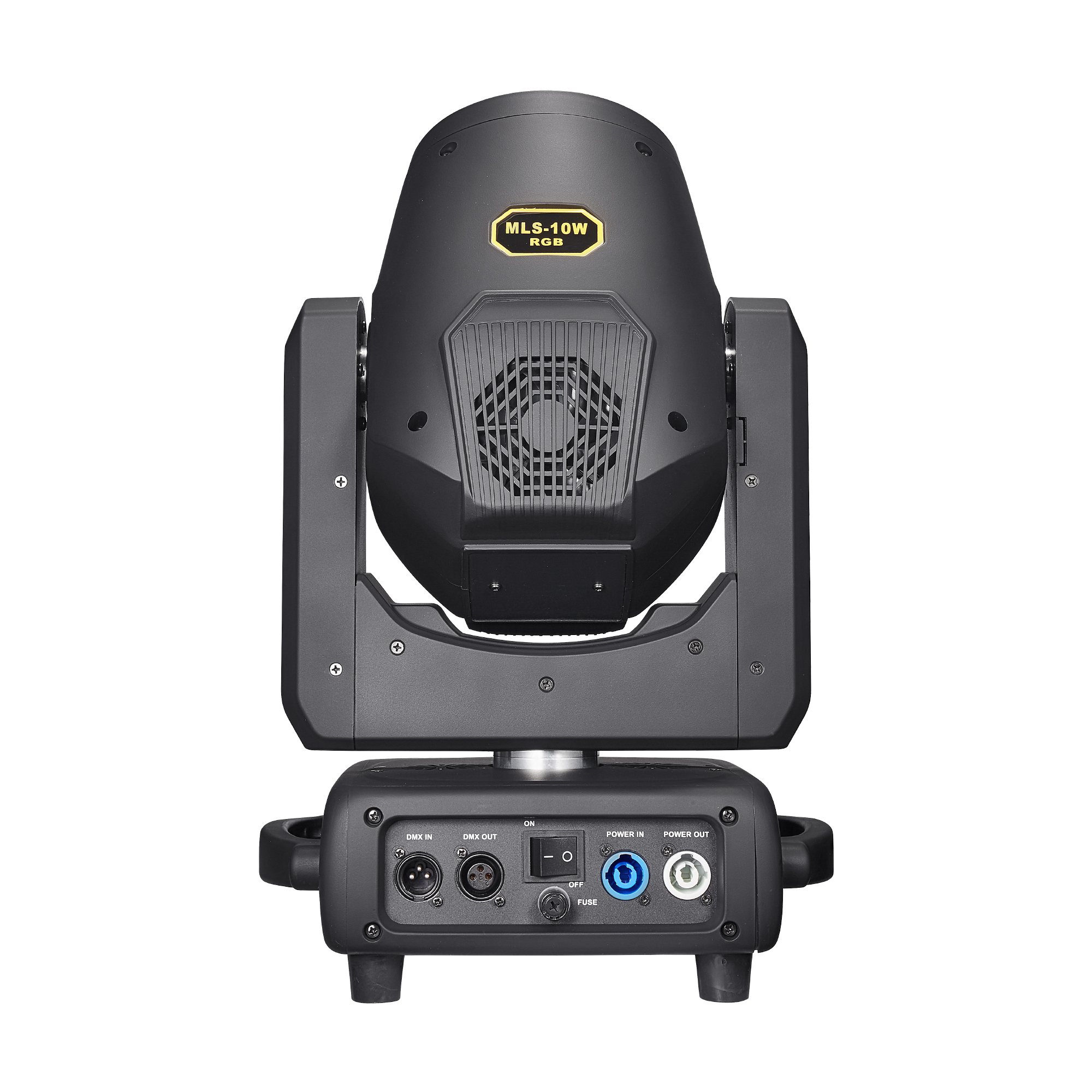

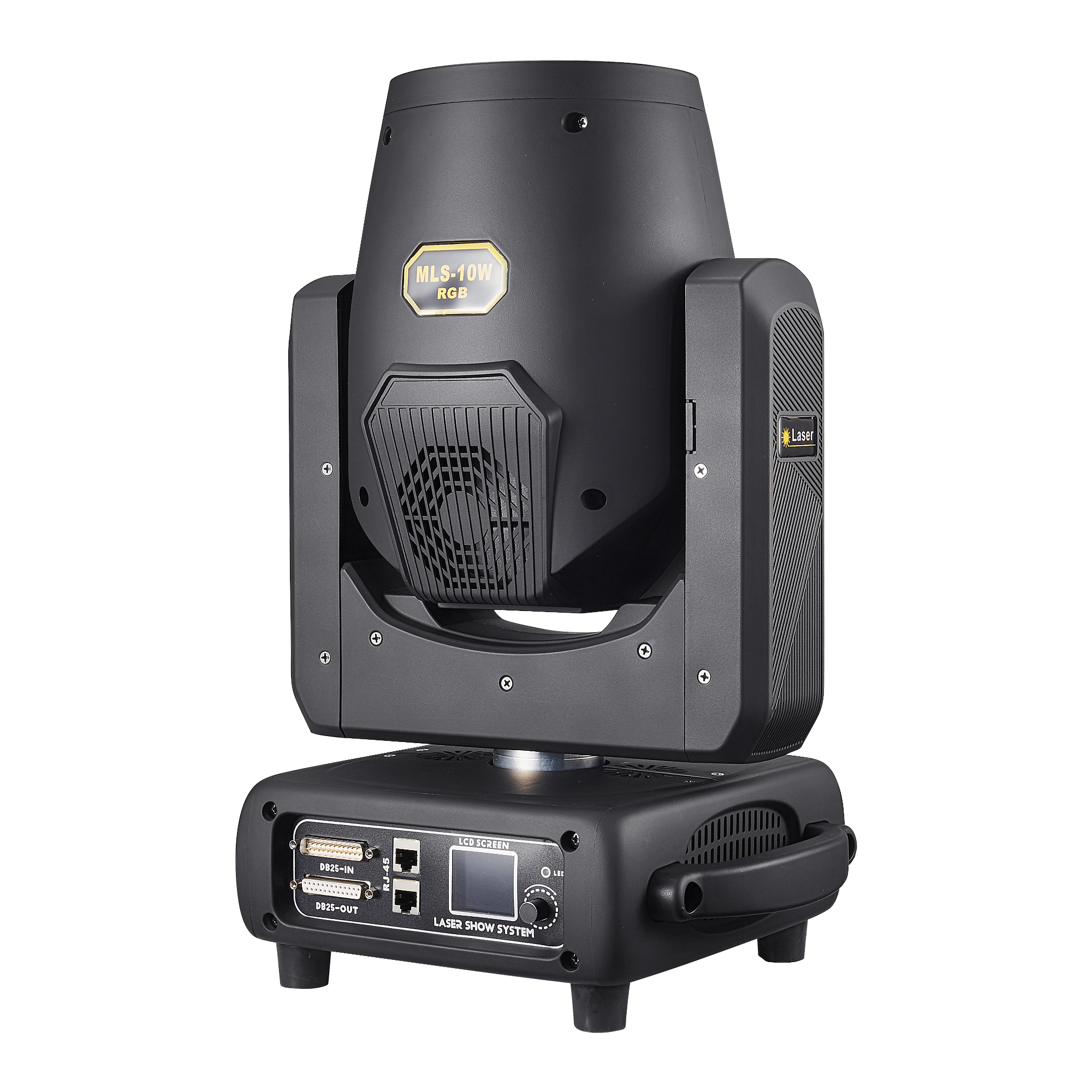

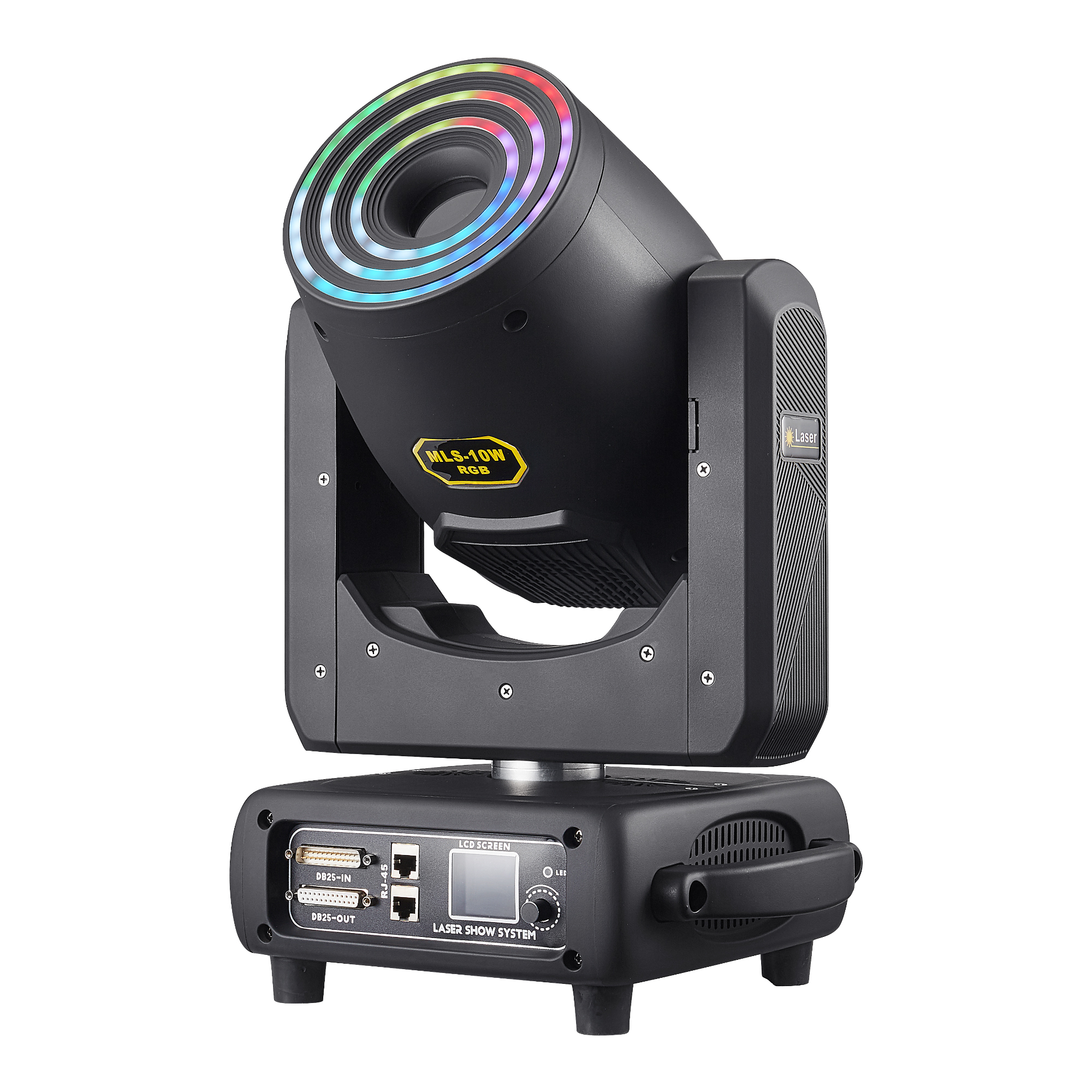

5W 10W 15W shaking head laser
5W 10W 15W shaking head laser
5W 10W 15W shaking head laser
5W 10W 15W shaking head laser
5W 10W 15W shaking head laser
5W 10W 15W shaking head laser
5W 10W 15W shaking head laser

5W 10W 15W shaking head laser

Price Interview

Price Interview

5W 10W 15W shaking head laser

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Video Effect lmage Other

Model:HM-LS10

Rated voltage: AC110-2220V

Shaking head laser+LED aperture

Rated frequency: 50-60Hz

Rated power: 300W

Laser color: RGB full-color

Laser power: RGB 10W/RGB 5W/RGB 15W/RGB

Laser source: R3w/638nm G3w/525nm B4w/447nm/(5W-R1, G1, B3)

Laser pattern: 256 laser animation patterns

Modulation signal: TTL modulation (analog modulation)

Scanning system: galvanometer scanning 30KPPS

Scanning angle: plus or minus 20 degrees

Stepper motor: 2 two-phase 57 motors

Horizontal: 540 degrees Vertical: 270 degrees

LED dyeing configuration: Three layer wheat jazz light strip

Control mode: DMX512, voice control, self-propelled, computer ILDA interface, network cable Art Net,

Control channel: 20/25 channels

DMX special effects: single pattern mode, with functions such as pen breakage, flicker, rotation, movement, scrolling, segmentation, gradient drawing, color change, and resizing.

Function: Can be controlled by laser software such as pangolin QSFB3/FB4 or Phoenix.

The ILDA control adopts an automatic electronic transfer switch, which has scanning system error protection and laser shutdown protection.

Instructions for use: The ambient temperature should be controlled between 0~35 ℃. A dry and dust-free environment can reduce laser power attenuation and extend the lifespan of the lamp

Suitable venues: nightclubs, bars, nightclubs, concerts, advertising promotions, etc

Cooling system: fan forced cooling of Shaking head laser+LED dye light

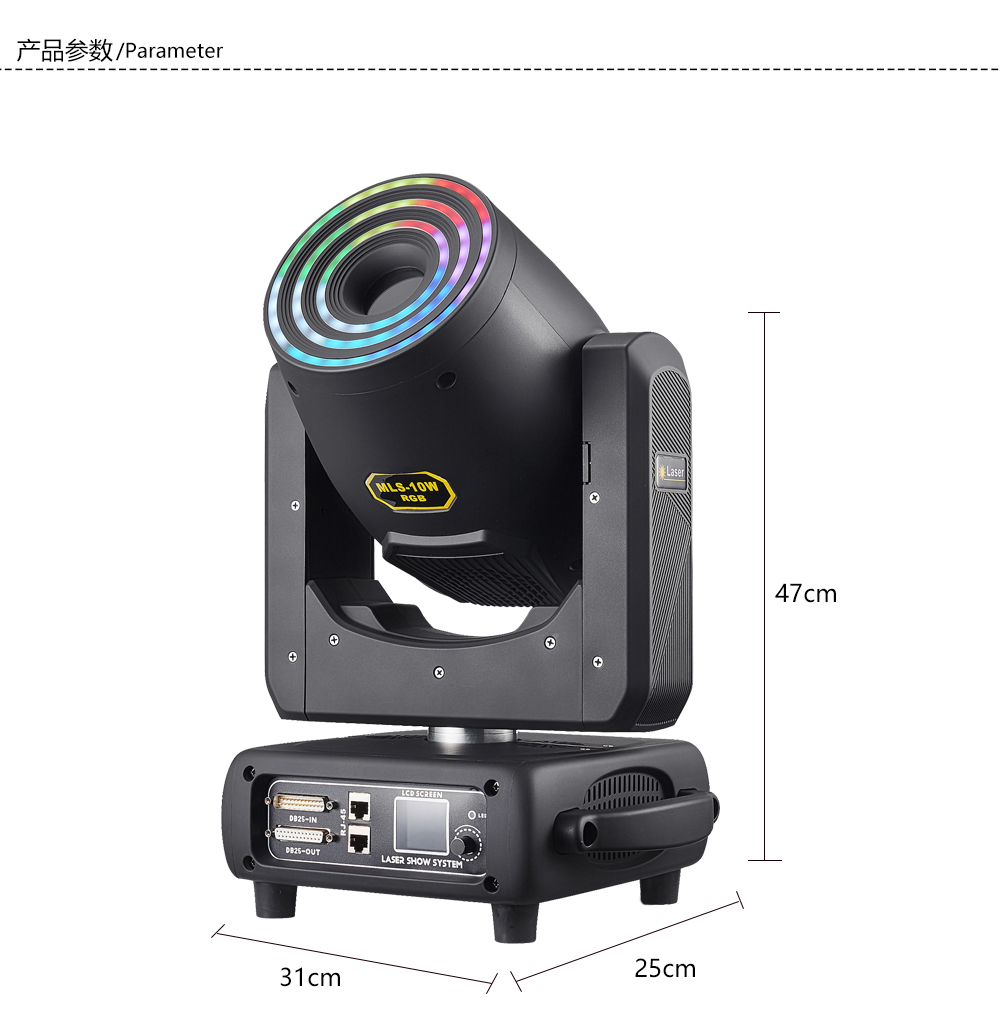

Bare lamp size: 31 * 25 * 47cm

Net weight: 9.3kg

Packaging size: 50 * 34 * 35cm

Gross weight: 10.5kg
